Vestax ENGINE HTX

Name: Vestax ENGINE HTX
Brand: Vestax

PRODUCT DESCRIPTION:

For someone turntables with belt drives Vestax HandyTrax Series, HandyTrax USB Series (WHITE / BLACK / SILVER modification) is designed replacement power unit - engine DC SERVO commutator motor PM7I60. Second, improved generation (specification up to 2014 year). The motor shaft is equipped with a guide pulley for belt drive (this must be ordered separately if necessary; code is the Vestax BD-2.9 belt). The motor is equipped with solder PIN (some of series of unit has also connectors DPS MOLEX for simple wiring harness connection to turntable electronics). Only for Vestax authorized repairers and authorized service centers. It is recommended to entrust replacement of the unit to specialists.

TIP: if you are unsure of your choice, consult our technical support before purchasing.

ADVICE: This is only custom made premium part ! Can´t be buy, only for pre-order.

NOTE: For a better overview of the location of part, see the Service manual.

KEY FEATURES:

for Vestax HandyTrax Series / HandyTrax USB Series of belt drive turntables designed variant PM7I60 DC Engine
original Vestax part Made in Japan designed exclusively by Sanko-Sharp for Vestax Corporation Ltd.
monoblock DC motor with PIN connectors for soldering, shaft with belt guide pulley
improved generation of drive unit engine (spec. up to 2014 year)
it is recommended replacement of this unit only to experts
premium original part Made in Japan for Vestax

TECHNICAL PARAMETERS:

Specification	HandyTrax Series, HandyTrax USB Series (WHITE / BLACK / SILVER variants)

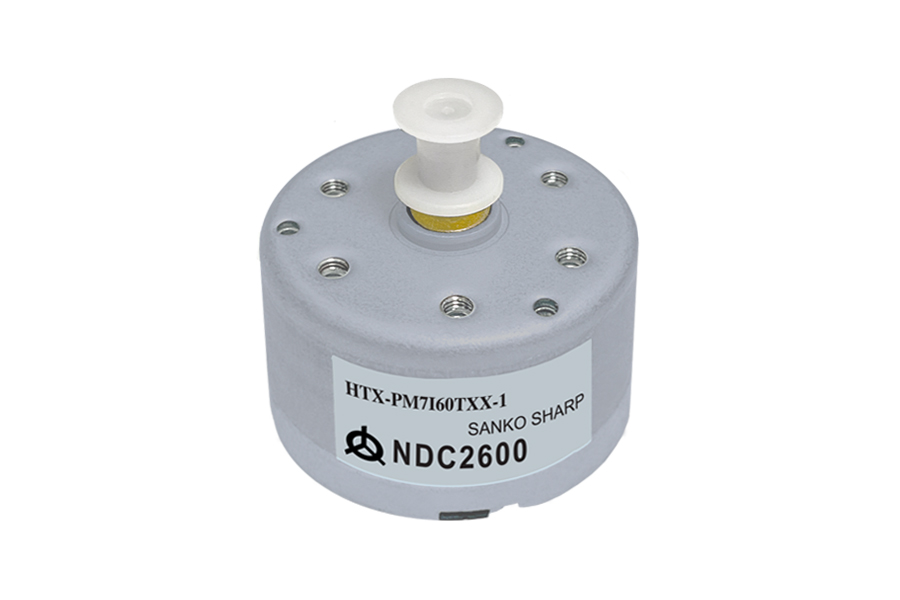

Description	DC SERVO PM7I60 commutator flat drive unit engine with shaft with belt guide pulley
Connection	connectors PIN for soldering
Assembly	3 screws M6 x 12
Dimension	ø 67 x 36 mm / H=28 mm
Weight	0,40 kg (btto)
Accessories	assembly and wiring instructions

DOWNLOAD:

Table of parts and accessories Vestax (7,4 MB)
Table of compatibily parts (0,1 MB)

PHOTOGALERY:

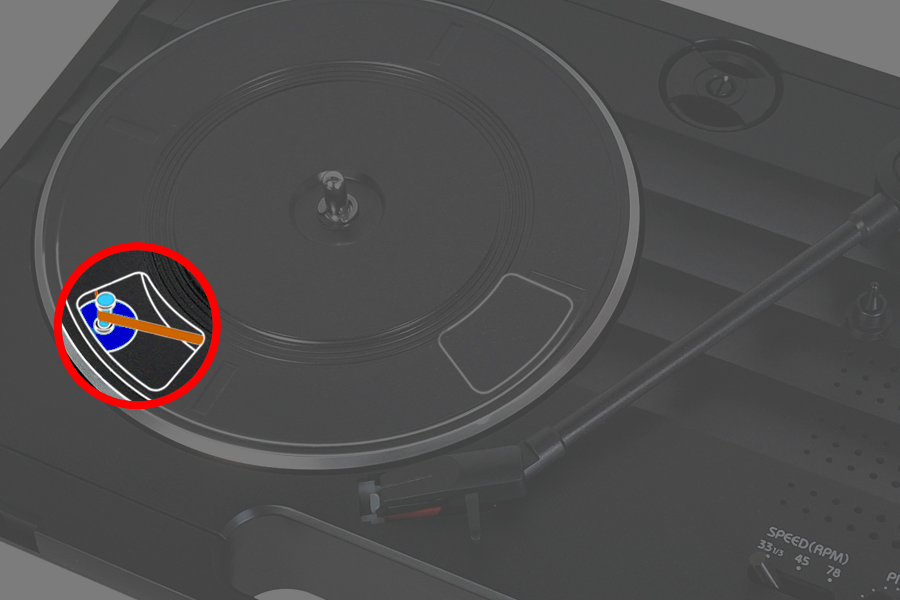

Vestax Engine HTX (drawing of application)

Currency Converter

You will immediately find out - how much you will pay. Enter the amount of the product price in the USD / $ field and you will get the conversion to your local currency. This services provided by FreeCurrencyRates.com.

FreeCurrencyRates.com

Add comment

Name:
E-mail:
Title:
Message :
Security question :	Name of Japan's highest mountain?

The highlighted fields are mandatory.

Comments - Overview

BDT2500 (George, 20 May 2026 23:21:33) Reply | Show replies
Can I use this motor unit for an older model BDT2500 GREEN series (JP) ?

Re: BDT2500 (Vestax TECH SUPPORT, 22 May 2026 12:19:18) Reply
Dear George, yes,this original spare part (motor unit VEE012000BDT) can be used also for models Vestax BDT-2500 JP variant (with deep green chassis).
