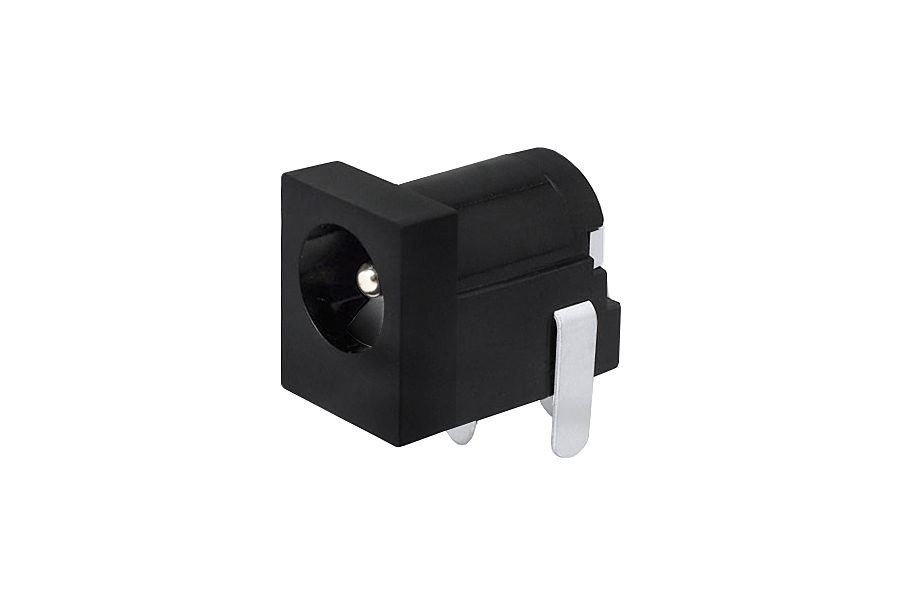

Vestax DC-7 PS Socket

PRODUCT DESCRIPTION:

Original Japan DC-7 PS (power supply) socket specially designed for Vestax VCI Series and SPIN / SPIN 2 / TYPHOON Series of MIDI controllers (for power supply unit connector), designed for service replacement on the motherboard of internal sound card (90° angle base). The socket is made of durable ABS, contact material - OFC Copper / contact plating - Nickel. Designed for PCB soldering.  Replacing DC-7 PS Socket is not easy for the user, if you are unsure, leave the replacement to an authorized service center.

Warning: these original Vestax DC-7 PS socket are not compatible with commonly available DC socket from other manufacturers. They were manufactured by Japanese factory JKD™ specifically for Vestax Corporation according to atypical requirements (shape of mounting brackets, location of PINs). These are original Japanese Vestax spare parts that are not interchangeable with similar parts!

WARNING:  This is original JP Vestax part - are not compatible with similar parts from other manufacturers!

TIP:  If you are unsure of your choice, consult our technical support before purchasing.

KEY FEATURES:

• original Vestax DC-7 PS (power supply) socket, 90° angle base, for soldering on MB of internal SC for Vestax  VCI Series / Spin / Typhoon

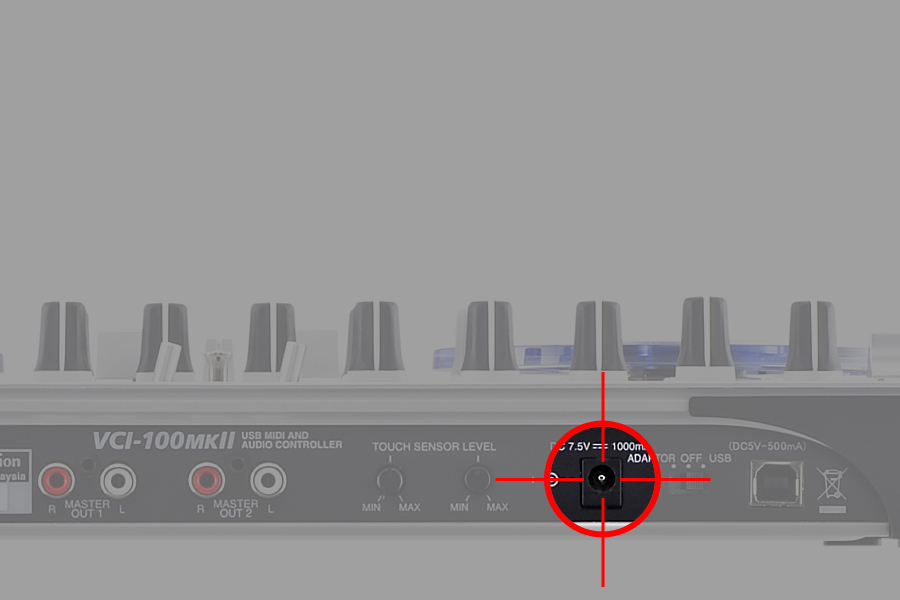

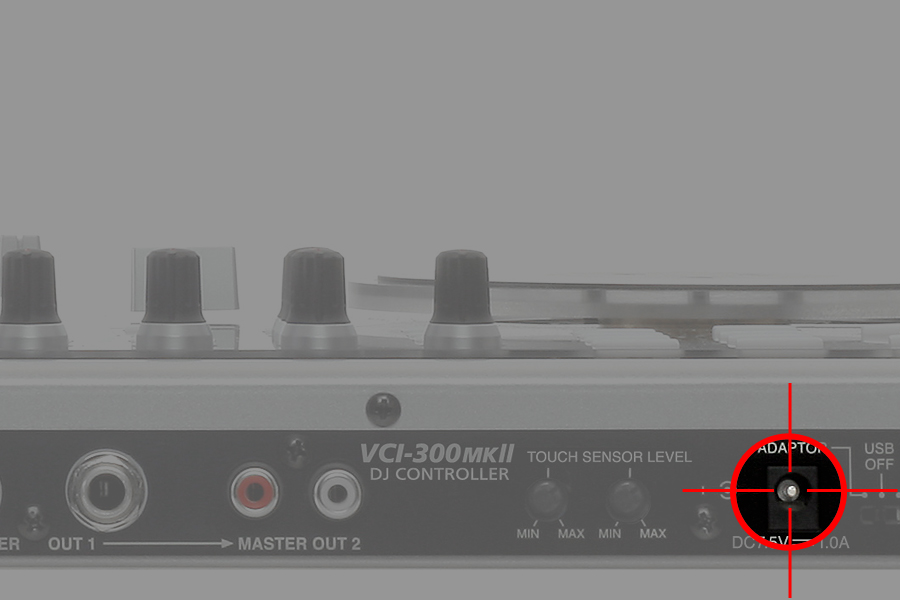

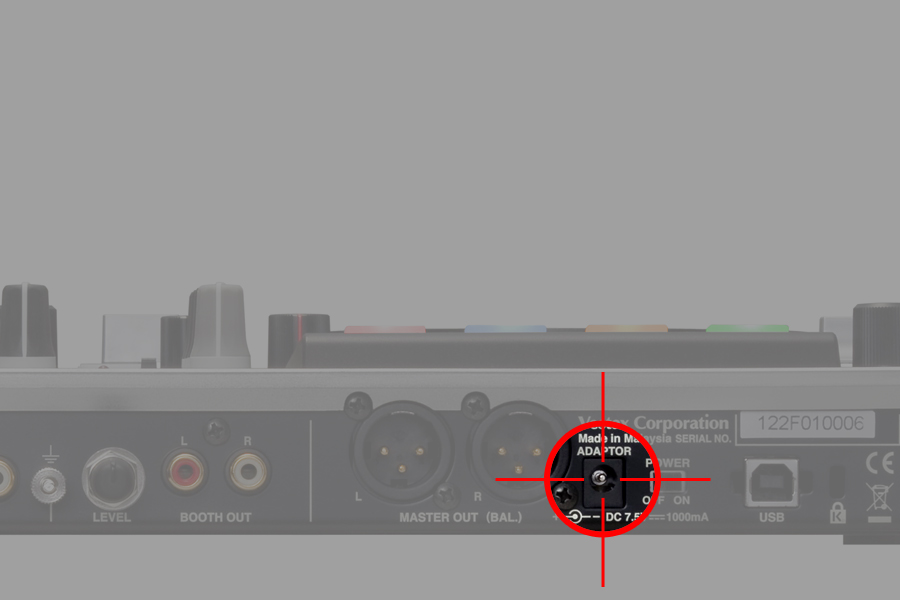

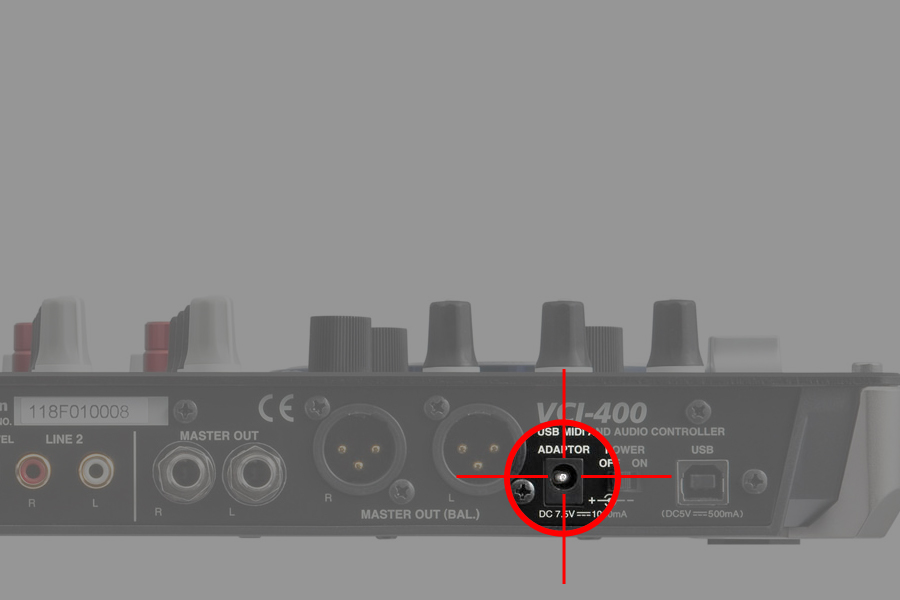

• designed for Vestax VCI-100, VCI-100MkII, VCI-300, VCI-300MkII, VCI-380 Series, VCI-400 Series
• designed for Vestax Spin, Spin 2, Spin 2 WHT, Typhoon, Typhoon BLK, Typhoon RED
• contact material - OFC Copper / contact plating - Nickel
• designed especially for authorized service repairs
• to be mounted (soldering) on a PCB mainboard
• permissible nominal voltage DC 9 V / 2,5 A
• original Japanese part

DOWNLOAD:

Table of parts and accessories Vestax (7,4 MB)
Table of compatibily parts (0,1 MB)

PHOTOGALERY:
