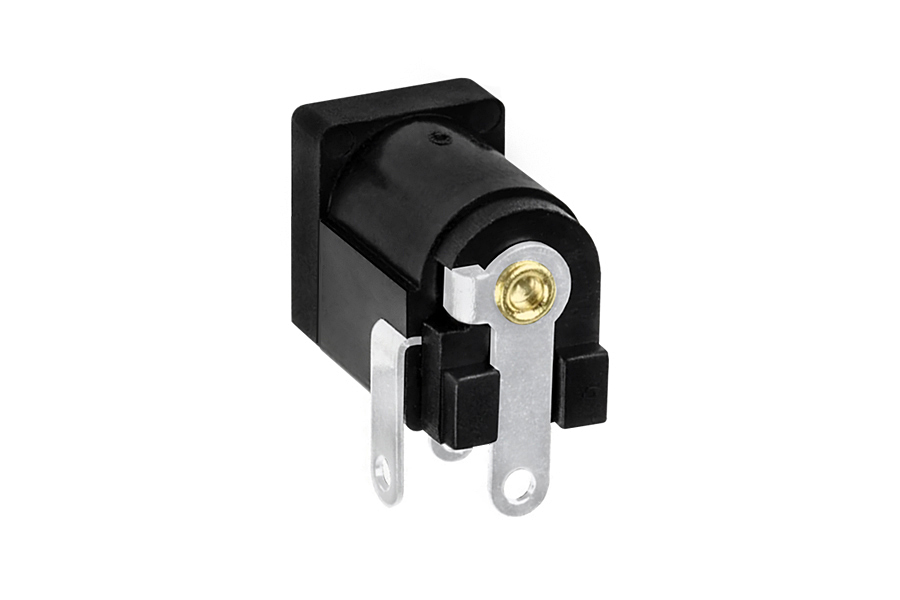

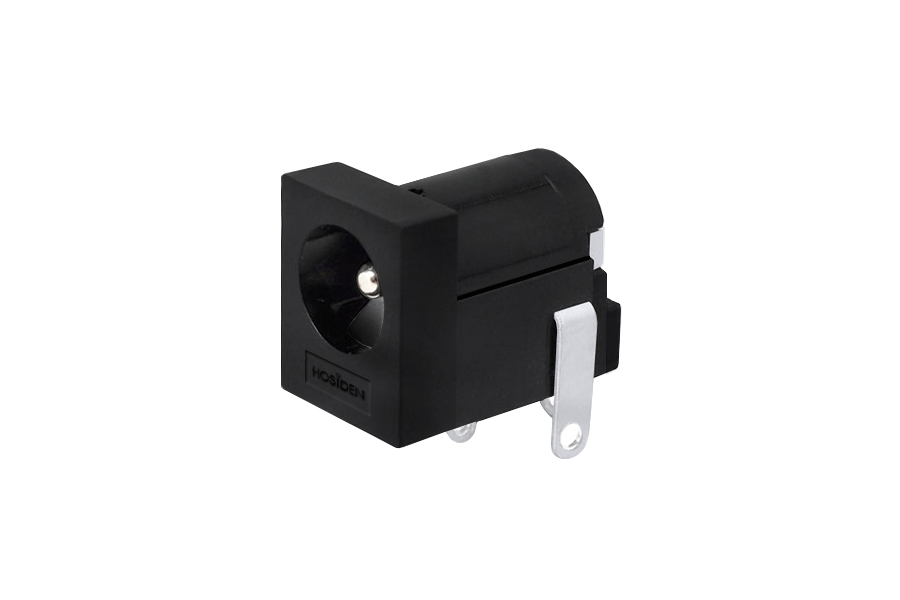

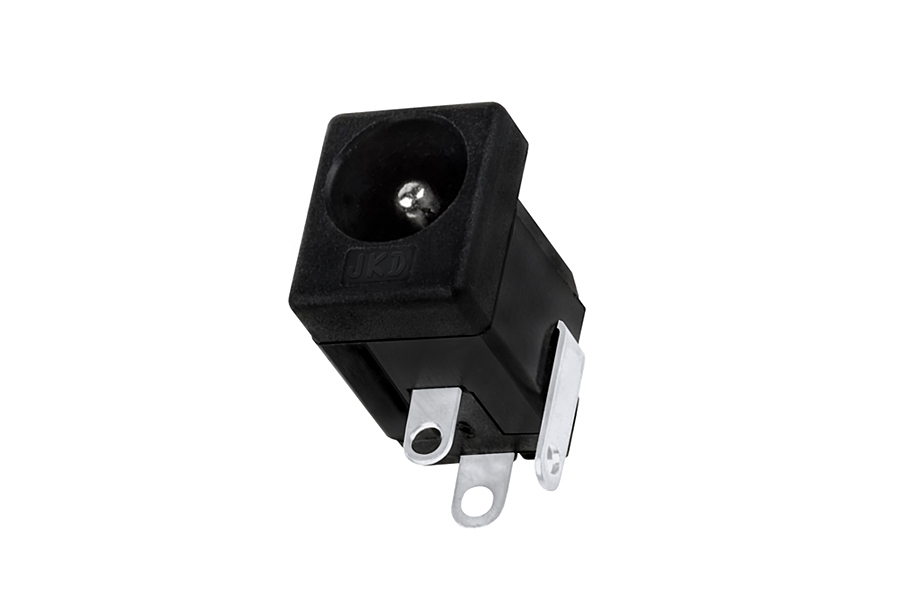

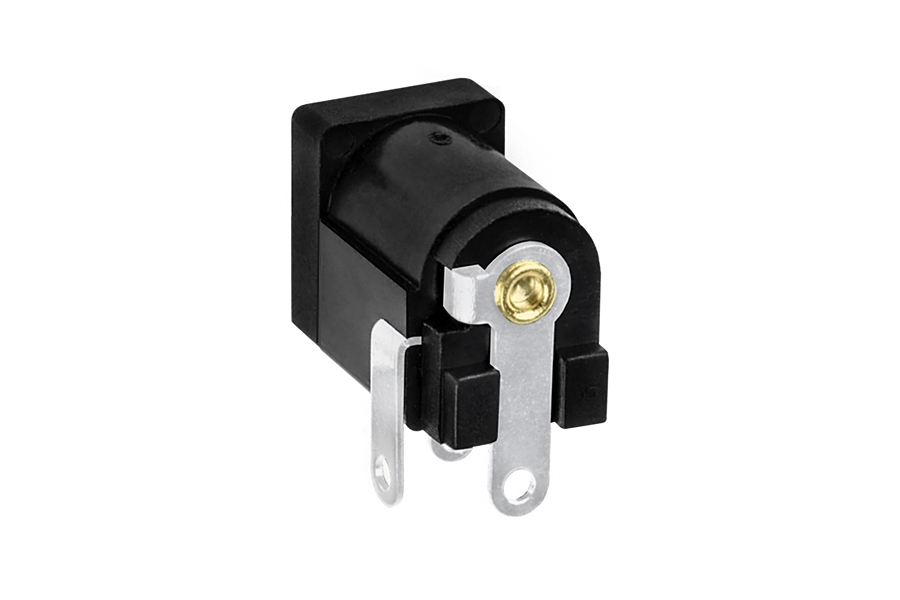

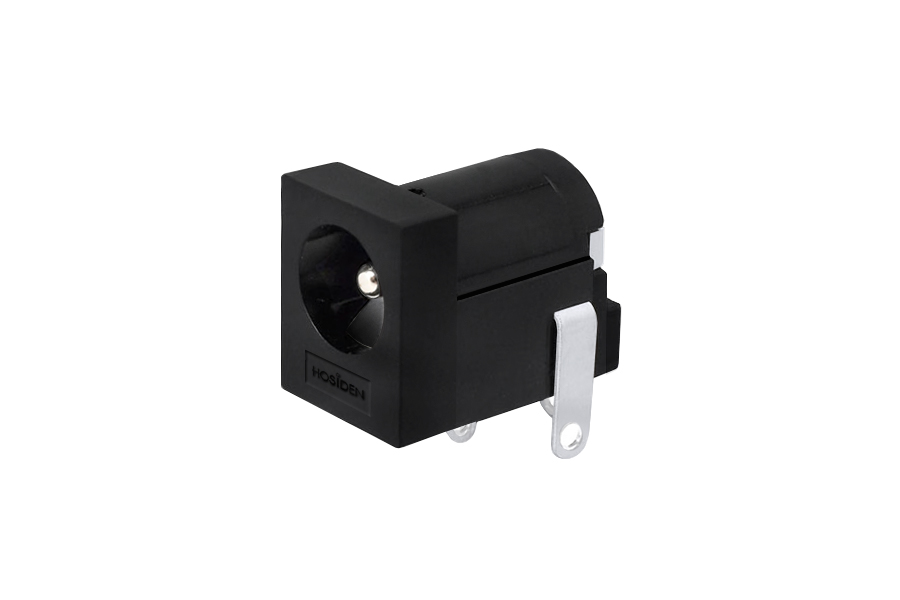

Vestax DC-15 PS Socket

Name: Vestax DC-15 PS Socket
Brand: Vestax

PRODUCT DESCRIPTION:

Original Japan DC-15 PS (power supply) socket specially designed for Vestax PMC / PCV / VMC mixers (for power supply unit connector), designed for service replacement on the PCB / MB module (90° angle base). The socket is made of durable ABS, contact material - Brass, Phosphor Bronze / contact plating - Nickel. Designed for PCB soldering. Replacing AC-12 PS Socket is not easy for the user, if you are unsure, leave the replacement to an authorized service center.

Warning: these original Vestax DC-15 PS socket are not compatible with commonly available DC socket from other manufacturers. They were manufactured by Japanese factory JKD™ specifically for Vestax Corporation according to atypical requirements (shape of mounting brackets, location of PINs). These are original Japanese Vestax spare parts that are not interchangeable with similar parts!

WARNING: these original terminals intended only for Vestax PMC / PCV / VMC mixers.

Tip: if you are unsure, consult our customer technical support before purchasing.

KEY FEATURES:

original Vestax DC-15 PS (power supply) socket, 90° angle base, for soldering on PCB / MB of Vestax PMC / PCV / VMC mixers
designed for Vestax PMC-05Pro, PMC-05Pro Q, PMC-05Pro II, PMC-05Pro III (not VCA), PMC-05Pro SL (not VCA)
designed for Vestax PMC-05Pro D, PMC-06Pro A, PMC-06Pro D, VMC-002, VMC-002XL, VMC-002XLu
designed for Vestax PMC-01A, PMC-03A, PMC-05MkII, PMC-09A, PMC-26, MW-3000
designed for Vestax PCV-002, PCV-003, PCV-175, PMC-17A, PMC-170A
contact material - Brass, Phosphor Bronze / contact plating - Nickel
designed especially for authorized service repairs
to be mounted (soldering) on a PCB board
permissible nominal voltage 16 V / 2,5 A
original Japanese part

DOWNLOAD:

General table of spare parts and accessories Vestax (349 kB)
Table of compatibility CF, IF, PF, RF Vestax (1,85 MB)

FOTOGALERIE:

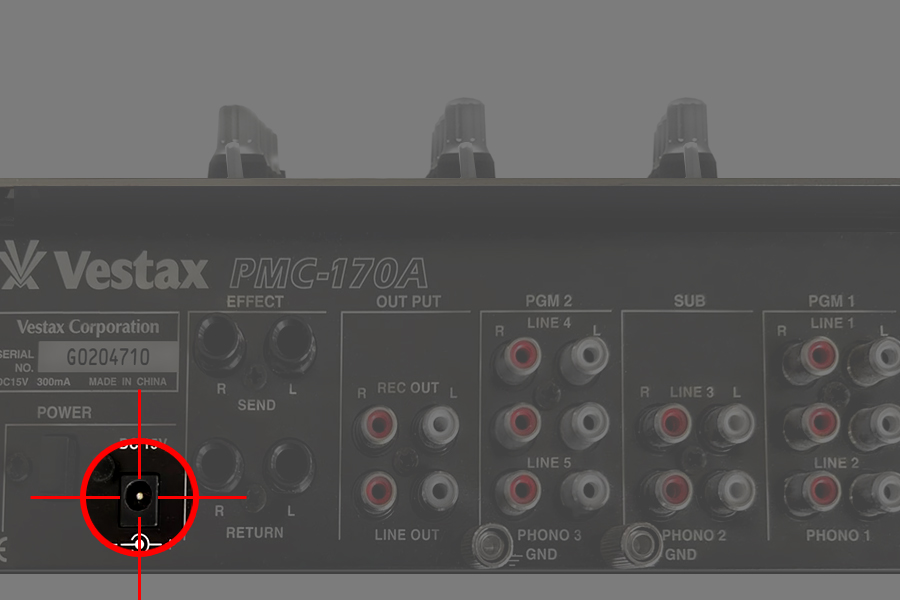

Vestax DC-15 PS Socket (example of using)
