Vestax AC-20 PS Socket

PRODUCT DESCRIPTION:

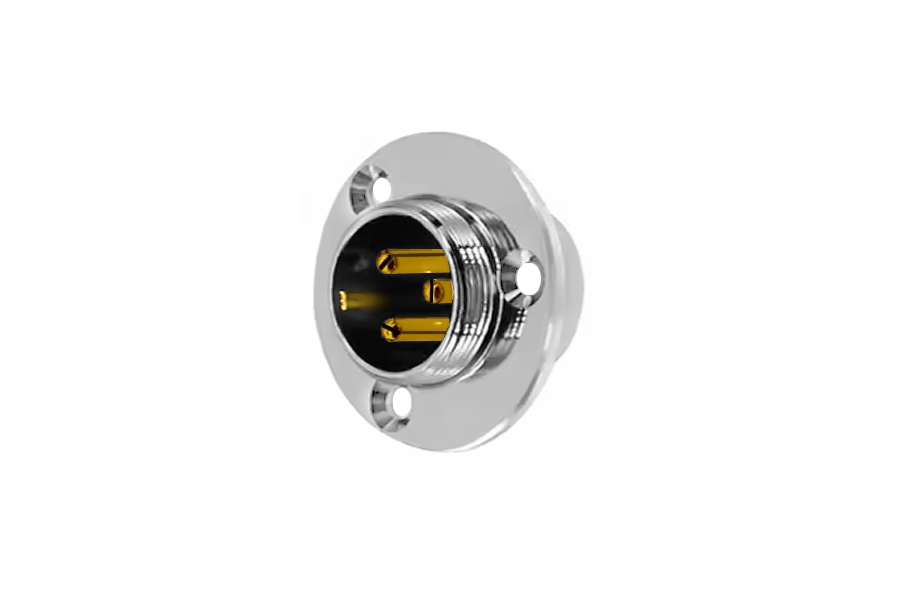

Original Japan AC-20 PS (power supply) 3-PIN socket specially designed for Vestax PMC-500, PMC-CX, PMC-08Pro mixers for power supply input (male circuit connector with fastening screw thread), designed for service replacement on the PCB / MB module for connection original Vestax AC-20 power supply unit. The socket is made of metal, durable ABS, contact material - Brass, Phosphor Bronze / contact plating - Nickel. Designed for mounting with 3 screws and PIN soldering.  Replacing AC-20 PS Socket is not easy for the user, if you are unsure, leave the replacement to an authorized service center.

Warning: these original Vestax AC-20 PS socket are not compatible with commonly available AC socket from other manufacturers. They were manufactured by Japanese factory JKD™ specifically for Vestax Corporation according to atypical requirements (shape of mounting brackets, location of PINs). These are original Japanese Vestax spare parts that are not interchangeable with similar parts!

WARNING:  This is original JP Vestax part - are not compatible with similar parts from other manufacturers!

TIP:  If you are unsure of your choice, consult our technical support before purchasing.

KEY FEATURES:

• original Vestax AC-20 PS (power supply) 3-PIN socket  male circuit connector with 3 mounting screws and  fastening screw thread

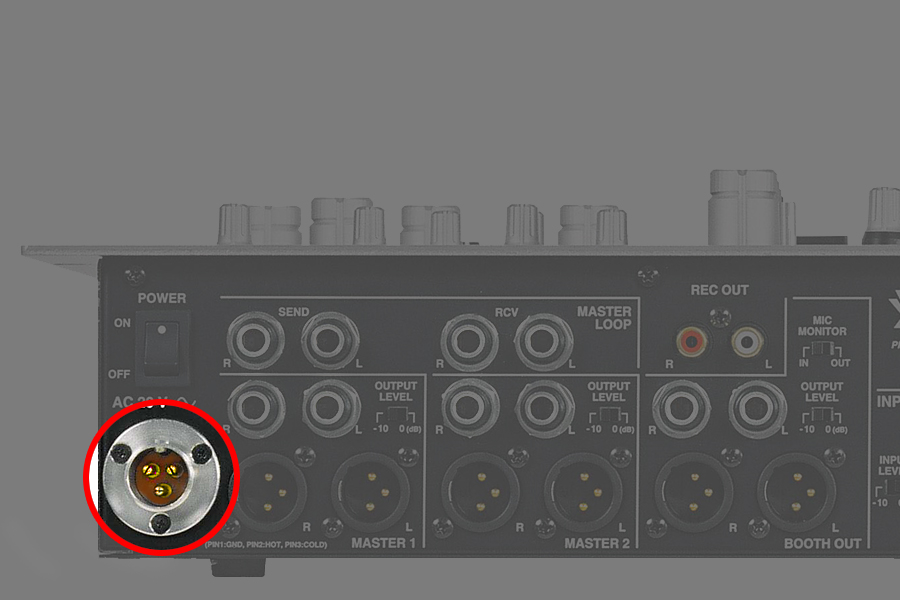

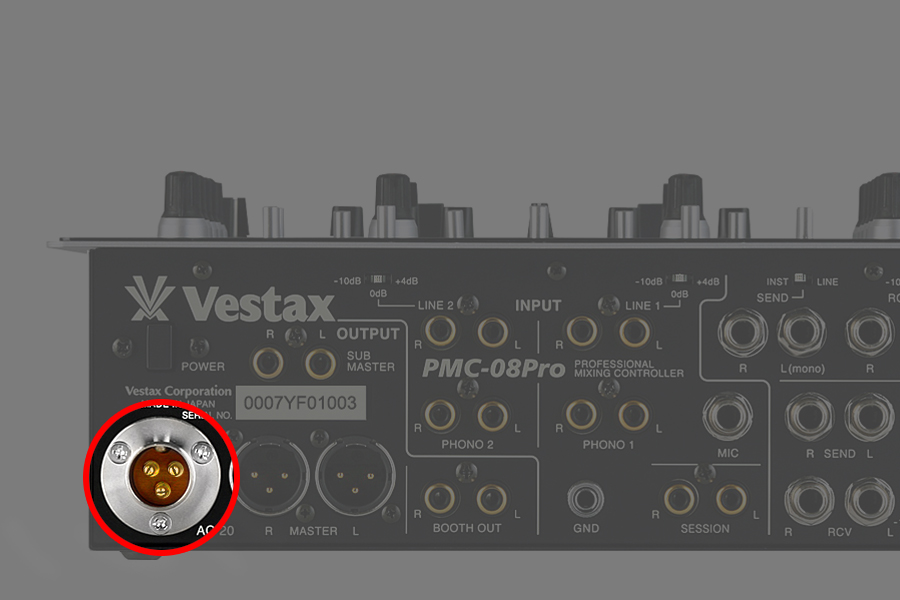

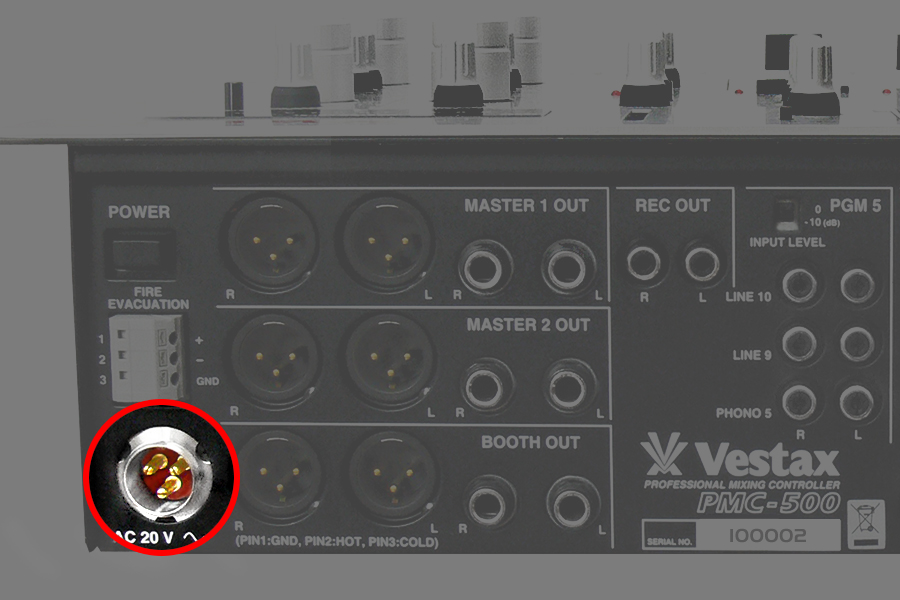

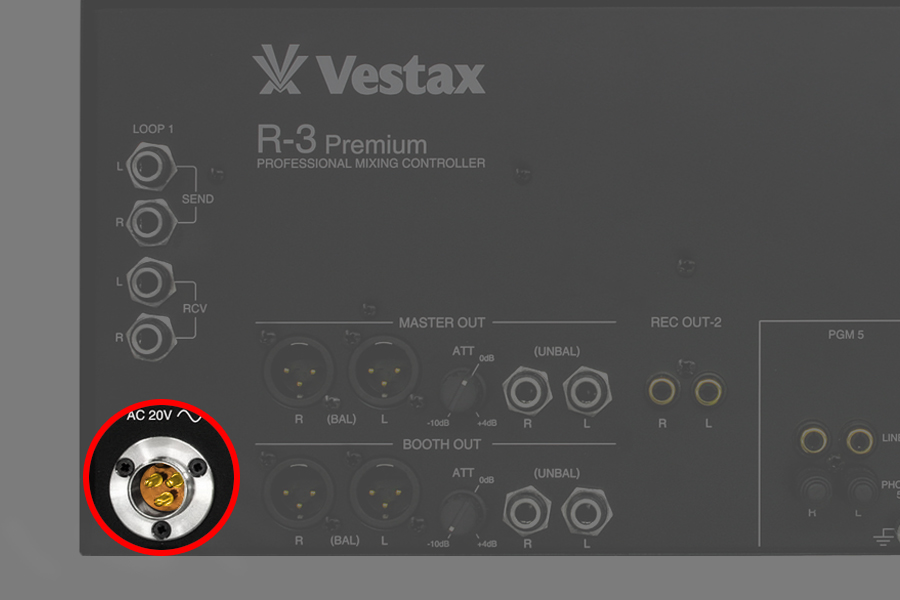

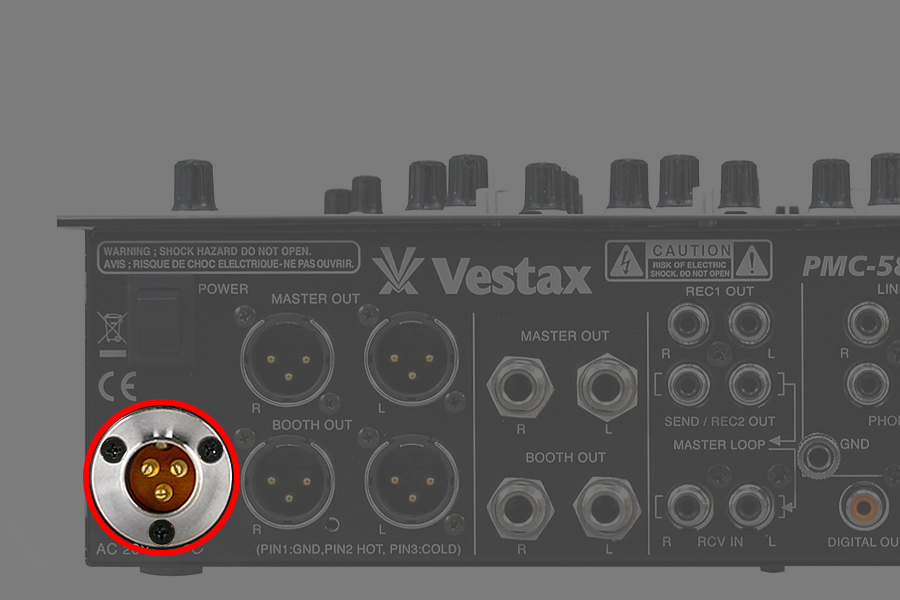

• designed for Vestax PMC-500, PMC-CX, PMC-08Pro BLK, PMC-08Pro WHT and some vintage models
• contact material - Brass, Phosphor Bronze / contact plating - Nickel
• designed especially for authorized service repairs
• to be mounted via nut and soldering of PINs
• permissible maximal voltage 125 V / 7 A
• original Japanese Vestax part
